Active Directory Fundamentals

Active Directory Structure

Active Directory (AD) is a directory service for Windows network environments. It is a distributed, hierarchical structure that allows for centralized management of an organization’s resources, including users, computers, groups, network devices and file shares, group policies, servers and workstations, and trusts.

Active Directory Domain Services (AD DS) gives an organization ways to store directory data and make it available to both standard users and administrators on the same network. AD DS stores information such as usernames and passwords and manages the rights needed for authorized users to access this information.

A basic AD user account with no added privileges can be used to enumerate the majority of objects contained within AD, including but not limited to:

Forest - It may contain one or more domains. It is the security boundary within which all objects are under administrative control.

Domain - It is a structure within which contained objects (users, computers and groups) are accessible. It has many built-in Organizational Units (OUs) such as Domain Controllers, Users, Computers , and new OUs can be created as required.

At a very (simplistic) high level, an AD structure may look as follows:

INLANEFREIGHT.LOCAL/
├── ADMIN.INLANEFREIGHT.LOCAL
│   ├── GPOs
│   └── OU
│       └── EMPLOYEES
│           ├── COMPUTERS
│           │   └── FILE01
│           ├── GROUPS
│           │   └── HQ Staff
│           └── USERS
│               └── barbara.jones
├── CORP.INLANEFREIGHT.LOCAL
└── DEV.INLANEFREIGHT.LOCAL

Active Directory Terminology

Object - ANY resource present within an Active Directory environment such as OUs, printers, users, domain controllers, etc.

Attributes - Every object in Active Directory has an associated set of attributes used to define characteristics of the given object. A computer object contains attributes such as the hostname and DNS name.

Schema - The blueprint of any enterprise environment. It defines what types of objects can exist in the AD database and their associated attributes. For example, users in AD belong to the class “user,” and computer objects to “computer,” and so on.

Domain - A domain is a logical group of objects such as computers, users, OUs, groups, etc. We can think of each domain as a different city within a state or country.

Forest - A forest is a collection of Active Directory domains. It is the topmost container and contains all of the AD objects introduced below, including but not limited to domains, users, groups, computers, and Group Policy objects.

Tree - A tree is a collection of Active Directory domains that begins at a single root domain. A forest is a collection of AD trees. Each domain in a tree shares a boundary with the other domains.

Container - Container objects hold other objects and have a defined place in the directory subtree hierarchy.

Leaf - Leaf objects do not contain other objects and are found at the end of the subtree hierarchy.

Global Unique Identifier (GUID) - A GUID is a unique 128-bit value assigned when a domain user or group is created. This GUID value is unique across the enterprise, similar to a MAC address.

Security principals - Security principals are anything that the operating system can authenticate, including users, computer accounts, or even threads/processes that run in the context of a user or computer account (i.e., an application such as Tomcat running in the context of a service account within the domain).

Security Identifier (SID) - A security identifier, or SID is used as a unique identifier for a security principal or security group. Every account, group, or process has its own unique SID, which, in an AD environment, is issued by the domain controller and stored in a secure database.

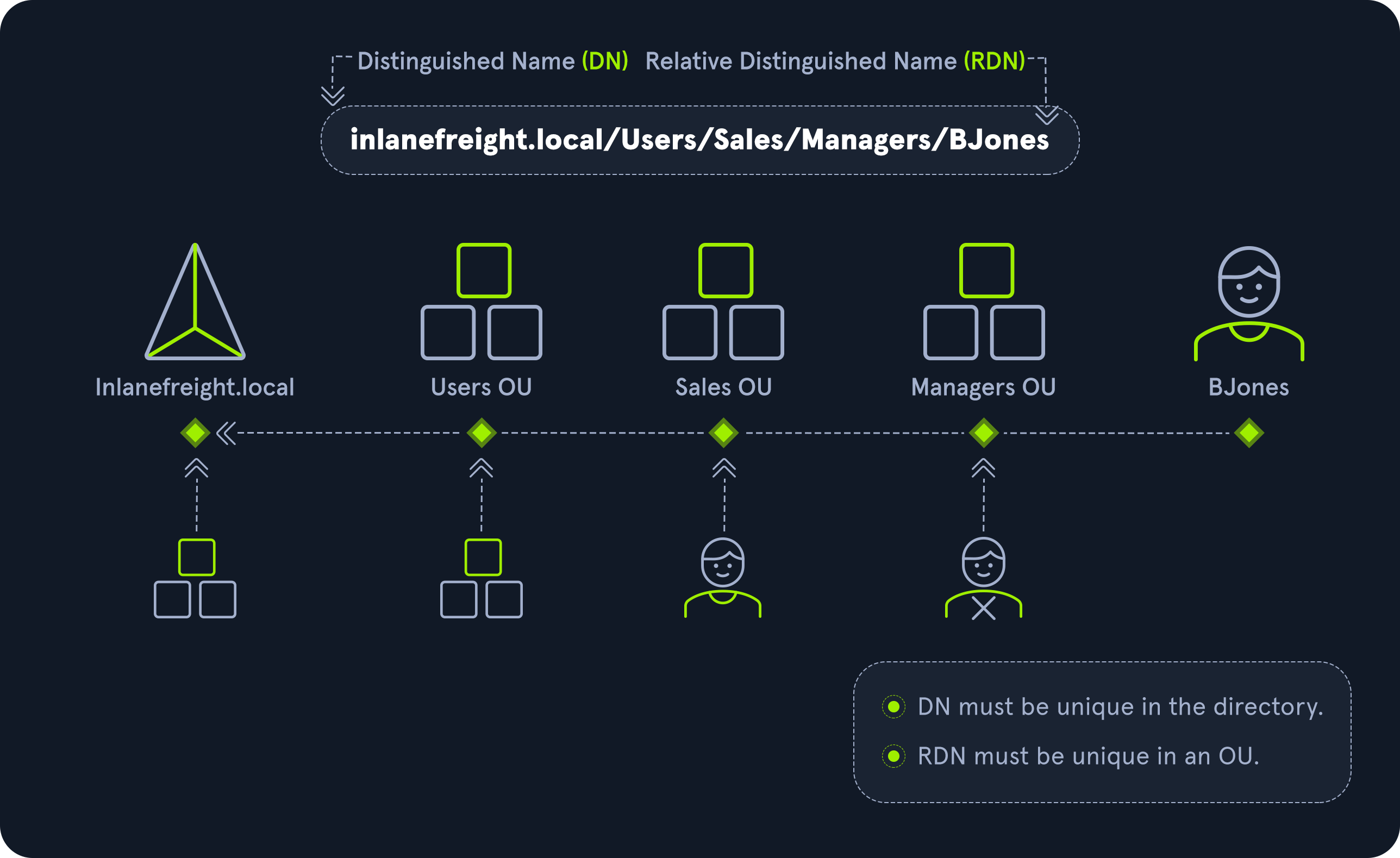

Distinguished Name (DN) - A Distinguished Name (DN) describes the full path to an object in AD (such as cn=bjones, ou=IT, ou=Employees, dc=inlanefreight, dc=local). In this example, the user bjones works in the IT department of the company Inlanefreight, and his account is created in an Organizational Unit (OU) that holds accounts for company employees.

Relative Distinguished Name (RDN) - A Relative Distinguished Name (RDN) is a single component of the Distinguished Name that identifies the object as unique from other objects at the current level in the naming hierarchy. In our example, bjones is the Relative Distinguished Name of the object.

sAMAccountName - The sAMAccountName is the user’s logon name. Here it would just be bjones.

userPrincipalName - The userPrincipalName attribute is another way to identify users in AD. This attribute consists of a prefix (the user account name) and a suffix (the domain name) in the format of [email protected].

FSMO Roles - Microsoft separated the various responsibilities that a DC can have into Flexible Single Master Operation (FSMO) roles. These give Domain Controllers (DC) the ability to continue authenticating users and granting permissions without interruption (authorization and authentication). There are five FSMO roles: Schema Master and Domain Naming Master (one of each per forest), Relative ID (RID) Master (one per domain), Primary Domain Controller (PDC) Emulator (one per domain), and Infrastructure Master (one per domain). All five roles are assigned to the first DC in the forest root domain in a new AD forest.

Global Catalog - A global catalog (GC) is a domain controller that stores copies of ALL objects in an Active Directory forest. The GC stores a full copy of all objects in the current domain and a partial copy of objects that belong to other domains in the forest.

Read-Only Domain Controller (RODC) - A Read-Only Domain Controller (RODC) has a read-only Active Directory database.

Service Principal Name (SPN) - A Service Principal Name (SPN) uniquely identifies a service instance. They are used by Kerberos authentication to associate an instance of a service with a logon account, allowing a client application to request the service to authenticate an account without needing to know the account name.

Group Policy Object (GPO) - Group Policy Objects (GPOs) are virtual collections of policy settings. Each GPO has a unique GUID. A GPO can contain local file system settings or Active Directory settings.

Access Control List (ACL) - An Access Control List (ACL) is the ordered collection of Access Control Entries (ACEs) that apply to an object.

Access Control Entries (ACEs) - Each Access Control Entry (ACE) in an ACL identifies a trustee (user account, group account, or logon session) and lists the access rights that are allowed, denied, or audited for the given trustee.

Discretionary Access Control List (DACL) - DACLs define which security principals are granted or denied access to an object; it contains a list of ACEs. When a process tries to access a securable object, the system checks the ACEs in the object’s DACL to determine whether or not to grant access.

System Access Control Lists (SACL) - Allows for administrators to log access attempts that are made to secured objects. ACEs specify the types of access attempts that cause the system to generate a record in the security event log.

Fully Qualified Domain Name (FQDN) - An FQDN is the complete name for a specific computer or host. It is written with the hostname and domain name in the format [host name].[domain name].[tld]. This is used to specify an object’s location in the tree hierarchy of DNS. An example would be the host DC01 in the domain INLANEFREIGHT.LOCAL. The FQDN here would be DC01.INLANEFREIGHT.LOCAL.

Tombstone - A tombstone is a container object in AD that holds deleted AD objects.

SYSVOL - The SYSVOL folder, or share, stores copies of public files in the domain such as system policies, Group Policy settings, logon/logoff scripts, and often contains other types of scripts that are executed to perform various tasks in the AD environment.

Active Directory Users and Computers (ADUC) - ADUC is a GUI console commonly used for managing users, groups, computers, and contacts in AD. Changes made in ADUC can be done via PowerShell as well.

ADSI Edit - ADSI Edit is a GUI tool used to manage objects in AD.

NTDS.DIT - The NTDS.DIT file can be considered the heart of Active Directory. It is stored on a Domain Controller at C:\Windows\NTDS\ and is a database that stores AD data such as information about user and group objects, group membership, and, most important to attackers and penetration testers, the password hashes for all users in the domain.

MSBROWSE - MSBROWSE is a Microsoft networking protocol that was used in early versions of Windows-based local area networks (LANs) to provide browsing services. It was used to maintain a list of resources, such as shared printers and files, that were available on the network, and to allow users to easily browse and access these resources. In older version of Windows we could use nbtstat -A ip-address to search for the Master Browser.

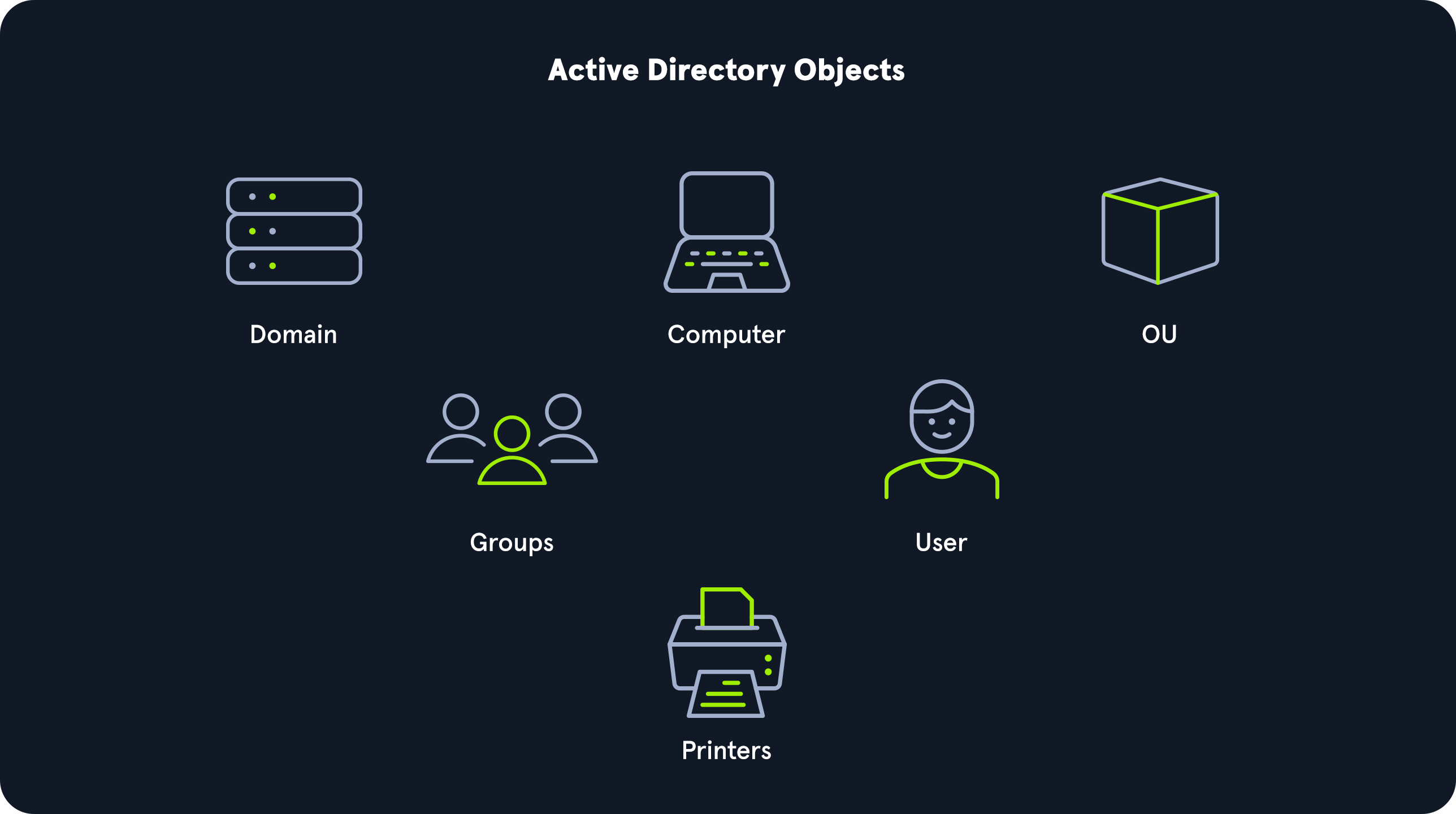

Active Directory Objects

Users - Users are considered leaf objects, which means that they cannot contain any other objects within them. A user object is considered a security principal and has a security identifier (SID) and a global unique identifier (GUID). User objects have many possible attributes, such as their display name, last login time, date of last password change, email address, account description, manager, address, and more.

Contacts - A contact object is usually used to represent an external user and contains informational attributes such as first name, last name, email address, telephone number, etc. They are leaf objects and are NOT security principals (securable objects), so they don’t have a SID, only a GUID.

Printers - A printer object points to a printer accessible within the AD network. Like a contact, a printer is a leaf object and not a security principal, so it only has a GUID. Printers have attributes such as the printer’s name, driver information, port number, etc.

Computers - A computer object is any computer joined to the AD network (workstation or server). Computers are leaf objects because they do not contain other objects. However, they are considered security principals and have a SID and a GUID.

Groups - A group is considered a container object because it can contain other objects, including users, computers, and even other groups. A group is regarded as a security principal and has a SID and a GUID.

Organizational Units (OUs) - An organizational unit, or OU from here on out, is a container that systems administrators can use to store similar objects for ease of administration. OUs are often used for administrative delegation of tasks without granting a user account full administrative rights. For example, we may have a top-level OU called Employees and then child OUs under it for the various departments such as Marketing, HR, Finance, Help Desk, etc.

Domain - A domain is the structure of an AD network. Domains contain objects such as users and computers, which are organized into container objects: groups and OUs.

Domain Controllers - Domain Controllers are essentially the brains of an AD network. They handle authentication requests, verify users on the network, and control who can access the various resources in the domain. All access requests are validated via the domain controller and privileged access requests are based on predetermined roles assigned to users. It also enforces security policies and stores information about every other object in the domain.

Sites - A site in AD is a set of computers across one or more subnets connected using high-speed links. They are used to make replication across domain controllers run efficiently.

Built-in - In AD, built-in is a container that holds default groups in an AD domain. They are predefined when an AD domain is created.

Foreign Security Principals - A foreign security principal (FSP) is an object created in AD to represent a security principal that belongs to a trusted external forest. They are created when an object such as a user, group, or computer from an external (outside of the current) forest is added to a group in the current domain.

Active Directory Functionality

As mentioned before, there are five Flexible Single Master Operation (FSMO) roles. These roles can be defined as follows:

Domain and Forest Functional Levels

Trusts

A trust is used to establish forest-forest or domain-domain authentication, allowing users to access resources in (or administer) another domain outside of the domain their account resides in. A trust creates a link between the authentication systems of two domains.
